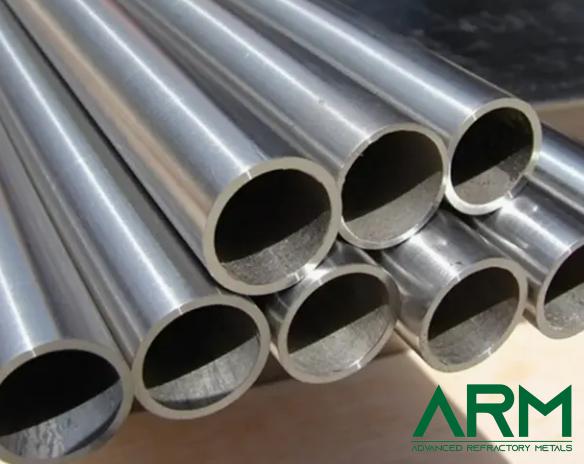

TA0004 Tantalum Tube/Pipe

Advanced Refractory Metals provides tantalum tube (Ta tubes, Ta tubing, Tantalum pipe) including seamless tube and welded tube & pipe. Welded tantalum tubing & piping is made from tantalum strip and tantalum foil, welded tubes can be with the wall thickness is thin and large OD.

TA0004 Tantalum Tube/Pipe
TA0004 Tantalum Tube/Pipe
TA0004 Tantalum Tube/Pipe
TA0004 Tantalum Tube/Pipe


Descriptions of Tantalum Tube/Pipe

Advanced Refractory Metals provides tantalum tube (Ta tubes, Ta tubing, Tantalum pipe) including seamless tube and welded tube & pipe. Welded tantalum tubing & piping is made from tantalum strip and tantalum foil, welded tubes can be with the wall thickness is thin and large OD. Other shaped and machined parts of tantalum are also available upon request.

Specifications of Tantalum Tube/Pipe

Size OD: 1.0~150mm; WT: 0.2~5.0mm; L: 200~6000mm
Material R05200, R05400
Standard ASTM B521-98
Purity 99.95% or 99.99%

Types of Tantalum Tubes

  • Seamless Tantalum Tube
    Ideal for applications requiring thicker walls, the seamless tantalum tube offers superior strength and uniformity. It is manufactured through extrusion or deep drawing, resulting in a tube free of welds for enhanced structural integrity.

  • Welded Tantalum Tube
    Best suited for thinner-walled requirements, the welded tantalum tube is fabricated from tantalum plates that are rolled and joined by welding. After welding, the surface is carefully polished to ensure a smooth, clean finish suitable for precision applications.

Tantalum and Tantalum Alloy Material Grades

* R05200, unalloyed tantalum, electron-beam furnace or vacuum-arc melt, or both

* R05400, unalloyed tantalum, powder-metallurgy consolidation.

* R05255, tantalum alloy, 90 % tantalum, 10 % tungsten, electron-beam furnace of vacuum-arc melt, or both.

* R05252, tantalum alloy, 97.5 % tantalum, 2.5 % tungsten, electron-beam furnace or vacuum-arc melt, or both.

* R05240, tantalum alloy, 60 % tantalum, 40 % niobium, electron-beam furnace or vacuum-arc melt.

Applications of Tantalum Tube/Pipe

Tantalum tubes and pipes are primarily used in chemical processing equipment such as heat exchangers, condensers, and reactors due to their outstanding resistance to strong acids and corrosion. They are also found in electronics manufacturing for high-purity gas delivery systems, in aerospace and defense applications for high-temperature and high-strength components, and in the medical field for implants and surgical instruments thanks to their excellent biocompatibility.

Packaging of Tantalum Tube/Pipe

Our tantalum tubes are mostly packed in wooden crates, this can protect the tantalum pipe and tantalum tubing during transportation and handling.
