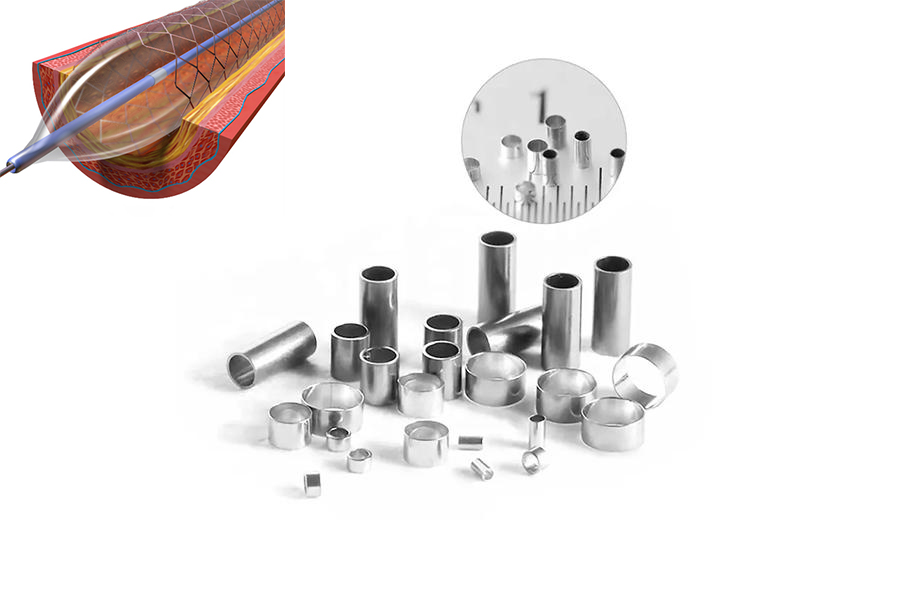

Tantalum Marker Bands vs Other Marker Materials

Precision is essential in interventional procedures. In a procedure like angioplasty or stent placement, physicians depend on fluoroscopy for guidance. To make devices such as catheters, guidewires, and stents visible within the body, are used.

Among the many materials used in marker bands, tantalum, platinum, gold, and tungsten stand out. Each of them possesses certain properties and limitations, which determine their application in specific medical devices.

1. Radiopacity and Imaging Clarity

The primary use of a marker band is to provide clear visibility with X-ray or fluoroscopy.

• Tantalum: Extremely radiopaque, with excellent visibility even in small band sizes. Its density (~16.6 g/cm³) is more radiopaque than stainless steel but less than platinum or gold. It still provides good visibility for cardiovascular and peripheral interventions.
• Platinum & Platinum-Iridium: Extremely radiopaque, with densities of more than 21 g/cm³. These alloys provide the optimal imaging contrast, thus appropriate for neurovascular and coronary interventions where precision matters.

• Gold: Extremely radiopaque (density ~19.3 g/cm³) as well, but typically only in very delicate equipment where sight must be optimal.
• Tungsten: Radiopaque and dense (~19.3 g/cm³) as well, but less commonly used as a marker band as it is hard to machine and is brittle.

Platinum and gold are better than tantalum in being more radiopaque, but tantalum is clearly visible enough for most operations.

Further reading: The Versatility of Tantalum Marker Bands: Applications and Benefits

2. Biocompatibility and Safety

As marker bands are implanted or left in the body temporarily, it is essential for them to be compatible with human tissue.

• Tantalum: Outstanding biocompatibility. Tantalum has been employed for decades in implants like bone screws and cranioplasty plates with no adverse reaction. It is tolerated well in the bloodstream and does not corrode in biological systems.
• Platinum & Alloys: Similarly biocompatible, with a well-documented history of safe use in implantable medical devices.
• Tungsten: Generally biocompatible but prone to corrosion in body fluids that can limit long-term reliability.

All of platinum, tantalum, and gold are highly capable of biocompatibility, and tungsten is not ideal for long-term implantation.

3. Resistance to Corrosion

When placed within blood circulation, marker bands must be corrosion-resistant to avoid device malfunction or metal ion release.

• Tantalum: Self-healing oxide film gives natural corrosion resistance. Resists abusive conditions well, making it a safe long-term solution.
• Platinum: Noble metal that has super corrosion resistance, practically ungradable.
• Gold: Highly resistant to corrosion, but slightly softer and more wearable.
• Tungsten: Prone to oxidation and corrosion under some conditions, which can impair performance.

Platinum and gold are nearly immune to corrosion; tantalum is very good; tungsten is the weakest among this group.

4. Mechanical Properties and Manufacturability

The choice of marker band material also takes into account how easily it can be formed and attached to delicate devices like balloon catheters.

• Tantalum: Ductile but strong, and therefore can be machined into thin strips with high accuracy. Can be laser-cut or swaged onto devices without cracking. Its strength coupled with ductility makes it a popular choice.
• Platinum & Alloys: Easier to form and softer but mechanically weaker. Platinum-iridium alloys may be used to provide strength in certain situations.
• Gold: Very soft, so easy to machine but deforms when stressed.
• Tungsten: Very hard and brittle, too hard to shape into small, precise components.

The ideal strength-to-manufacturability ratio occurs in tantalum. Platinum alloys are manufacturable too, but gold is too soft and tungsten too brittle for mainstream marker band use.

5. Cost and Availability

Material cost is extremely significant, especially with mass manufacture of medical devices.

• Tantalum: Reasonably affordable compared to platinum and gold, promoting cost savings without compromising performance.
• Platinum: Highly priced because it is a rare metal with limited availability globally. This makes its use in devices increase the cost by a considerable amount.
• Gold: Also costly, but less attractive for mass use due to its price.
• Tungsten: Very inexpensive but hampered by processing problems.

Tantalum is a good compromise between performance and cost, and platinum and gold remain high-end options reserved for specialized, high-precision instruments.

How to Choose Metal Marker Bands

No single material is optimum for radiopaque marker bands—there is a choice based on trading off visibility, safety, mechanical performance, and cost.

1. Gold and platinum are unmatched for radiopacity and corrosion resistance but are costly and, in the case of gold, mechanically weak.
2. Tungsten is dense at low price but with the drawbacks of being brittle and subject to corrosion.
3. Tantalum most closely emulates these characteristics: extremely radiopaque, biocompatible, corrosion-resistant, and relatively inexpensive, with beneficial machinability into precise bands.

Conclusion

Tantalum has become among the most sought-after materials for marker bands in balloon catheters, stents, and other minimally invasive devices. It provides consistent performance in the majority of clinical applications, leaving platinum and gold for the most exigent applications where maximum radiopacity is worth the extra cost. For more medical materials, please check Advanced Refractory Metals (ARM).
