6 Major Uses of Tungsten Wire in Lighting

Tungsten wire is a key product in the lighting industry because of its unique physical characteristics. Tungsten has the highest metal melting point (about 3422°C or 6192°F), tensile strength, and stable electrical conductivity. These characteristics position tungsten as the preferred material for most uses in lighting.

Even while lighting technology continues to evolve, tungsten wire remains used in a wide variety of light sources—everything from antiquated incandescent lamps to specialized industrial and medical lamps.

1. Incandescent Light Bulbs

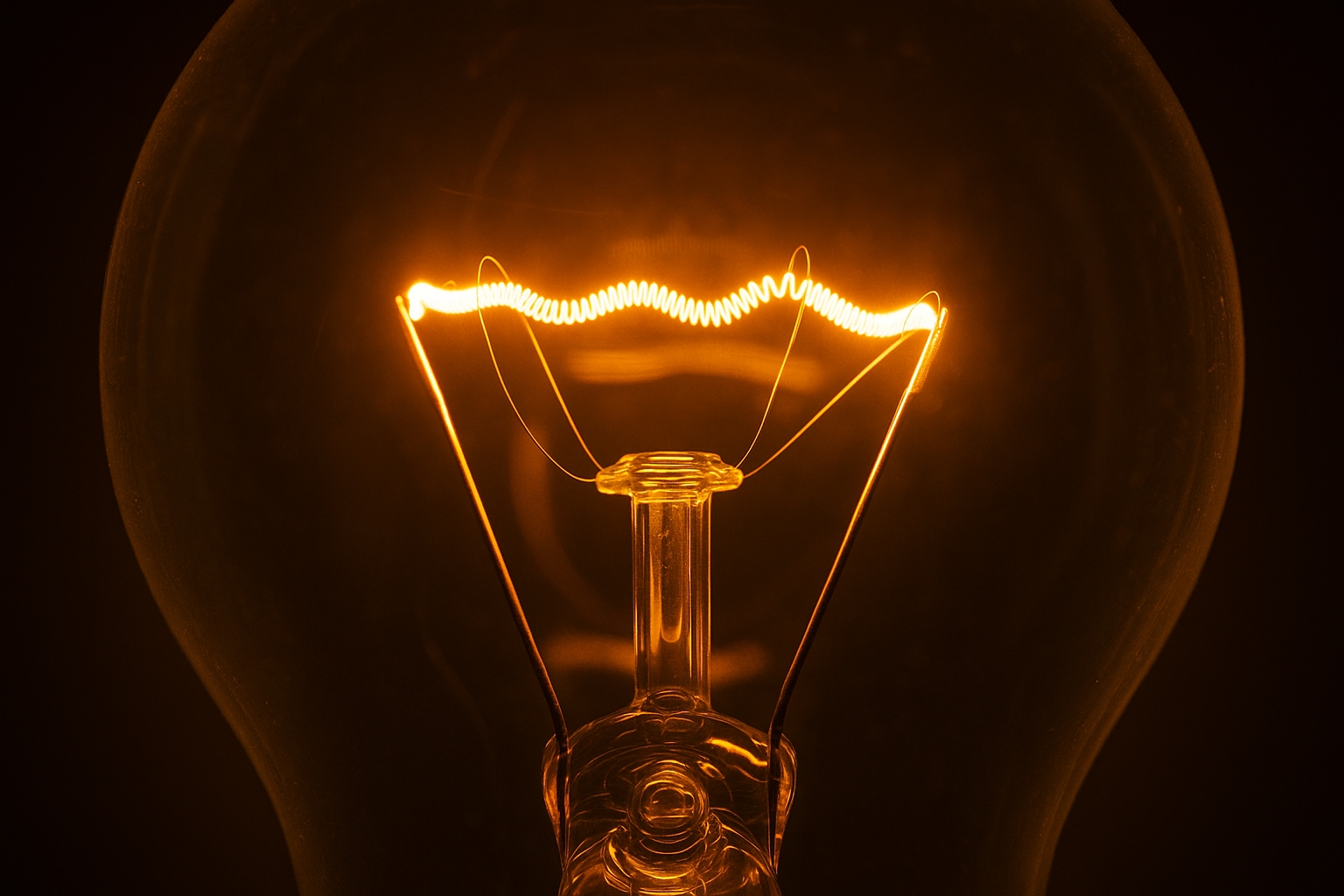

Tungsten wire is perhaps best known to be employed within incandescent light bulbs, one of the earliest electric lighting technologies. Within these bulbs, an extremely thin wire filament of tungsten is heated white-hot by an electric current to generate visible light. The filament often tends to be coiled to maximize surface area and minimize heat loss.

Tungsten's unusually high melting point comes in handy here—it can handle operating temperatures of 2500–3000°C without melting. It also retains mechanical strength withstood under thermal cycling, which makes it both long-lasting and reliable.

Incandescent lighting, though waning thanks to the advent of energy-saving alternatives, is still utilized in devices such as:

• Appliances and ovens (owing to resistance to heat)
• Decorative lighting
• Vintage-style light bulbs

Further reading: What Are the Main Uses of Tungsten Wire?

2. Halogen Lamps

A step up from the traditional incandescent light bulb, halogen lamps use tungsten filaments, with one notable difference: the bulb is filled with a halogen gas, such as bromine or iodine. The gas allows the halogen cycle to take place, which redeposits the evaporated tungsten back onto the filament.

This does:

• Extend filament life
• Allow higher operating temperatures
• Increase luminous efficacy (lumens per watt)

Halogen lamps are widely used in:

• Automobile headlights
• Projector lamps
• Stage and studio lighting
• Portable work lights

The high temperature strength of tungsten wire makes these lamps emit whiter and brighter light than ordinary incandescent bulbs.

3. Electrodes in Fluorescent Lamps

The light source in fluorescent lamps is essentially a gas discharge that excites phosphors within the tube. To initiate the process, however, the lamp does have electrodes at each end—coiled tungsten wire wrapped with electron-emissive coatings.

When electricity is passed through the tungsten filaments, they get heated and emit electrons. These electrons help ionize the gas in the tube to create and sustain the light-emitting arc. The heat resistance of tungsten enables these electrodes to support thousands of turn on/turn off operations.

Though fluorescent lighting is being phased out and replaced with LEDs, it's still widely used in:

• Commercial and industrial lighting
• School and office buildings
• Backlighting LCD panels

4. High-Intensity Discharge (HID) Lamps

Tungsten wire is also used as the electrode material for HID lamps, which is a group that includes:

• Metal halide lamps
• Mercury vapor lamps
• Xenon arc lamps
• Sodium vapor lamps

An electric arc is created between two tungsten electrodes within a gas-filled or vapor-filled space in HID lamps. Ionized gas or metal vapor creates extremely bright light. Tungsten is a suitable option for the electrodes since they can support:

• High current loads
• High operating temperatures
• Chemical reaction with other fill gases

HID lamps are used widely in:

• Road lighting
• Stadium lighting
• Industrial and warehouse lighting
• Motor vehicle headlamps (specifically xenon HID)

5. Infrared Heat Lamps

Although not necessarily visible, infrared lamps produce radiant energy that is used primarily for heating. Tungsten filament coils contained in a quartz or glass envelope are typically used in such lamps. The tungsten filament radiates infrared radiation when electrically heated.

Applications of tungsten-based infrared lamps include

• Restaurant food heating
• Therapeutic heating of medical devices
• Industrial curing and drying applications
• Brooding of animals in agriculture

The high melting point and emissivity stability of tungsten make it suitable for emitting a uniform infrared radiation spectrum over long periods.

6. Specialty and Precision Lighting

In specialty and high-end uses, tungsten wire is still important. For example:

1. Cinema and projector light bulbs: Require precise light emission and color temperature.
2. Surgical lighting and dental: Need high-intensity, accurate illumination in compact packages.
3. Scientific equipment: Microscopes or spectroscopy equipment utilize tungsten-based light sources because of their stability over spectrum.
4. Aerospace lighting: Tungsten wire finds its way into lamps that can withstand hostile conditions, e.g., vacuum or high-radiation.

Tungsten wire used in these applications is often alloyed or doped with compounds like rhenium or potassium to enhance performance—e.g., increased ductility or resistance to recrystallization.

Conclusion

Tungsten wire is still a underlying factor in many lighting technology. It is heat-resistant, durable, and extremely conductive, making it reliably function with a wide variety of light sources—ranging from the simple household bulb to the industrial-strength lamp. As lighting systems continue to become specialized and divided, tungsten wire continues to prove its usefulness in delivering steady and efficient light. For more information, please check Advanced Refractory Metals (ARM).
